Astell&Kern SE180

SE180

Shape Your Sound

SE180 Combines Innovation and fun

The third product in the A&futura line, the SE180, continues the trend of exciting innovation for Astell&Kern products, while providing the uncompromised sound quality Astell&Kern is famous for.

With the SE180, in addition to superb audio technology, we wanted to show users an element of fun that is hard to find in most Hi-Fi products. The DNA of innovation found in the A&futura line continues with the SE180. It is an advanced audio system created with the technology Astell&Kern is known for around the world. With the SE180, premium Hi-Fi Sound is now available through the use of interchangeable, all-in-one modules, by Astell&Kern.

Next Generation Advanced AMP technology

It is extremely difficult push beyond your previous best.

With the SE180, we applied Next Generation AMP technology to push beyond the sound quality others feel is acceptable for Premium Hi-Fi Sound to produce the best sound possible.
From the selection of OP-AMP parts, to circuit design, board layout and tuning, everything has been completely redesigned to produce the best sound.
It is difficult to improve the Signal-to-Noise Ratio (SNR) while maintaining a high output.

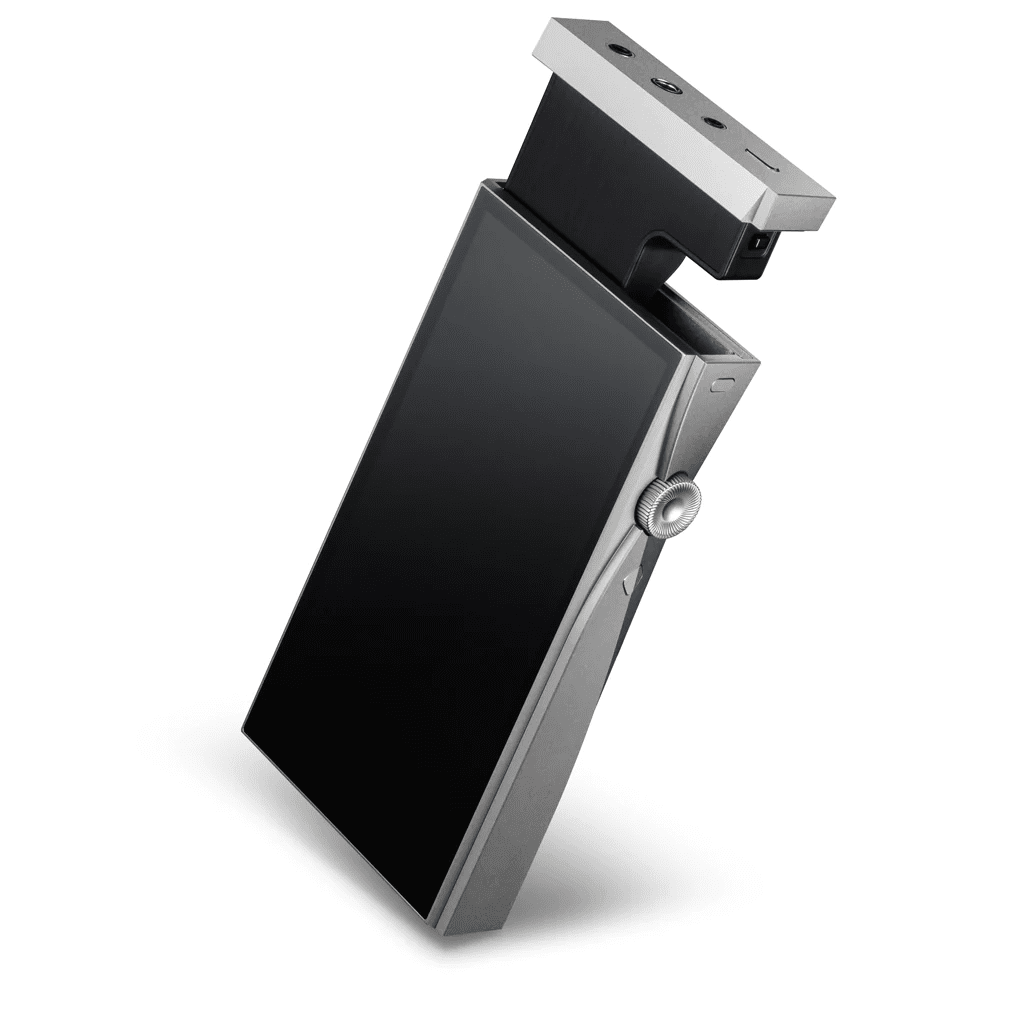

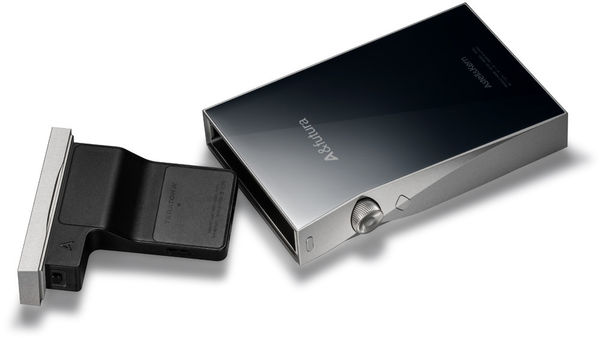

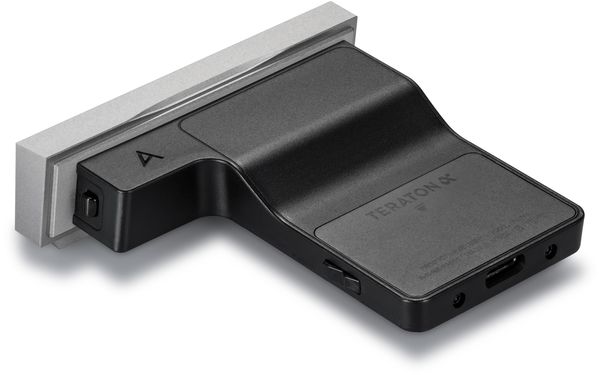

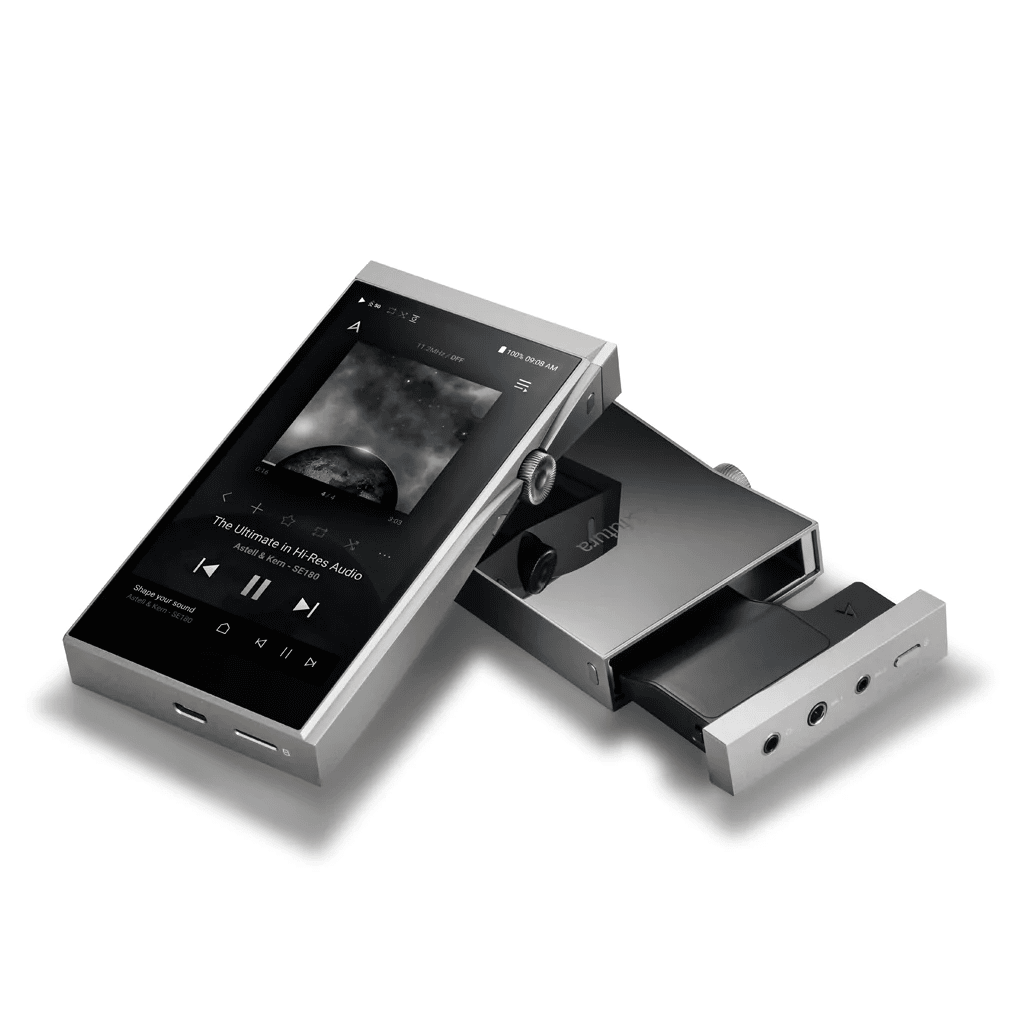

Interchangeable All-in-one Module

With the SE180, we wanted to expand on the multi-DAC idea that was first introduced with the SE200.

Like the SE200, different DACs can be used in one DAP, but we wanted to do something different for the SE180. The introduction of Interchangeable All-in-One Modules, carry on the multi-DAC experience, but add a new and fun experience. This reflects the DNA of the innovation that the A&futura line is known for.

The SE180 is a module-separated product that increases the convenience of connection between the main body of the player and the module. It features an innovative double-locking design that securely connects each component while providing smooth lines that naturally flow without any sense of separateness between the two pieces.

By applying different DAC/AMP configurations, adjusting tuning and outputs for each module, the user can choose the most suitable module for Premium Hi-Fi Sound. The default configuration module contains the ESS ES9038PRO, an 8-channel DAC mainly used for premium home audio equipment.

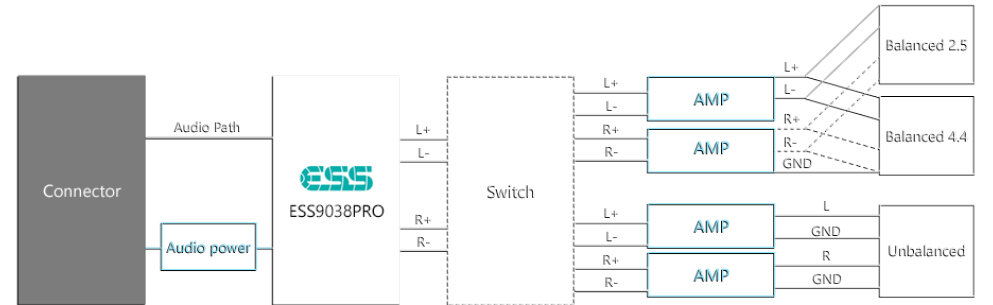

This DAC provides a wider dynamic range and more detailed sophistication. The module supports 2.5mm, 3.5mm and 4.4mm connections to allow for a greater variety of headphones/IEMs.

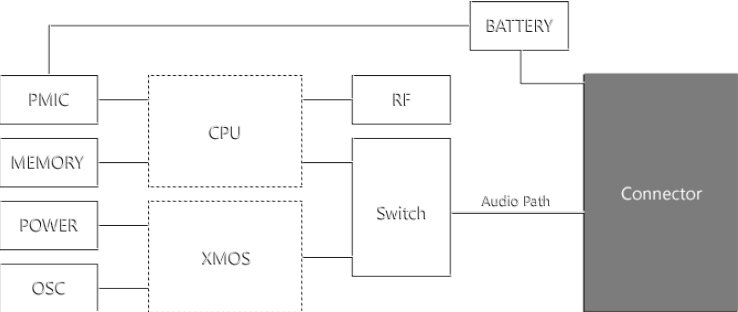

Circuit Separation Structure of Main Body and Module

By physically separating the main body from the All-in-One module, we completely block power and RF noise that may occur from the main body.
This creates an independent structure that prevents noise from interfering with music playback.

MAIN

DAC Module

Astell&Kern Audio Technology Forms the TERATON ALPHA Sound Solution

AK ULTIMATE SOUND SOLUTION, TERATON ALPHA

TERATON ALPHA is AK's Ultimate Sound Solution to produce audio playback that is close to the original sound through the audio output interface by use of effective power noise removal, efficient power management and amplification with minimal distortion.

TERATON ALPHA features Astell&Kern's patented technologies, which are the result of tens of thousands of hours of continuous research and development to produce sound close to the original sound the artist and producer intended.

Discover more

TERATON ALPHA

AK ULTIMATE SOUND SOLUTION, TERATON ALPHA

TERATON ALPHA is AK's Ultimate Sound Solution to produce audio playback that is close to the original sound through the use of effective power noise removal, efficient power consumption and amplification without compromise through the audio output interface.

What makes Astell&Kern sound different?
Many people have similar ideas about sound. They assume “It is the DAC that determines the sound in the DAP, and in the end, if you use the same DAC, the sound will be similar for each product.”

The DAC does play a large part of the sound signature in a DAP, but it's not the only factor that determines the level of sound.

DAPs can be largely divided into three areas: power, amplifier and interface.

Audio Power Part

The starting point of Astell&Kern’s perfect sound delivery is the audio technology that most effectively removes power noise and converts the signal, which is essential to the power of the audio.

Related Patent:
Hi-Fi audio device and method to remove power noise

Amplifier Part

The reason why the same DAC produces different sound signatures is because of differences in AMP design. Astell&Kern's advanced AMP technology features efficient power consumption and powerful amplification that produces the best audio performance without compromise.

Related Patent:
Audio wiring structure for improving crosstalk

Audio Interface Part

The audio interface that converts digital signals to analog and outputs them is composed of technology developed by Astell&Kern and perfected over the years.
The result is perfect sound, without noise.

Related Patent:
Audio signal muting device and digital signal conversion, etc.

*TERATON ALPHA features Astell&Kern's patented technologies, which are the result of tens of thousands of hours of continuous research and development to produce sound close to the original sound the artist and producer intended.

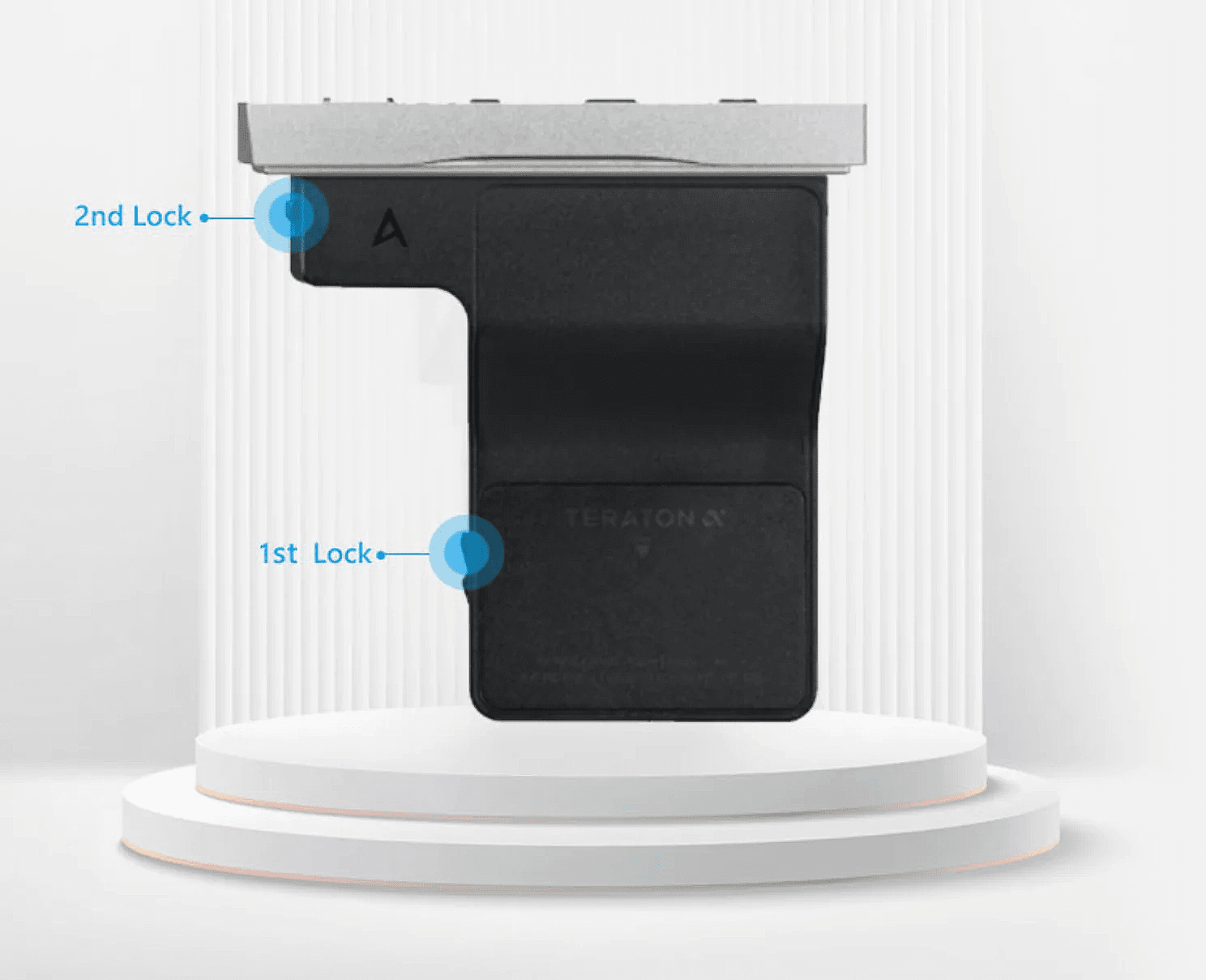

Modules Double Lock for Ease of Use

The biggest difference between the SE180 and other products that use interchangeable modules is that the SE180 uses a double-locking mechanism rather than screws to fasten the module to the body.

The first locking structure attaches the module and the body. The second locking structure informs the user that the module has been securely fastened to the main body.

The spring supported internal connectors of the main body allow reliable audio signal connection and are used to prevent connection failure in case of external shock to the player when on the go

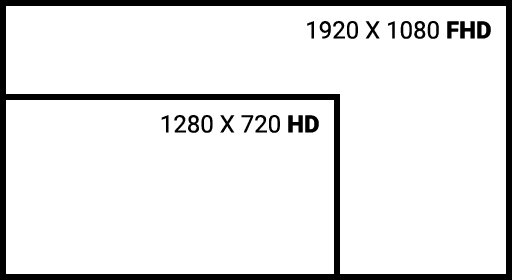

Adoption of Full HD Display forImproved Image Quality

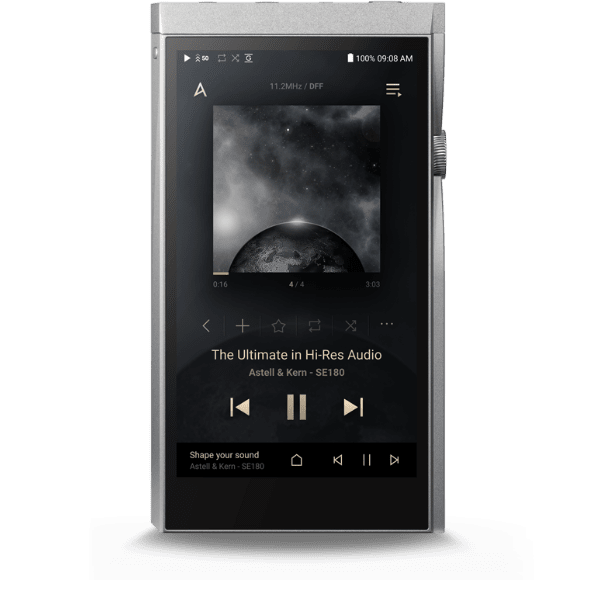

The SE180 features a full HD screen to provide a higher quality display.

Upgrades to Enhance the User Experience

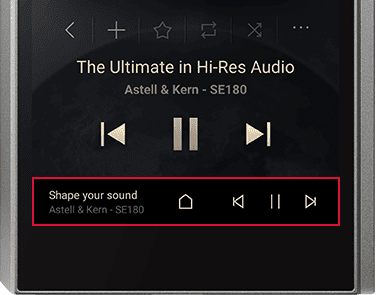

Navigation bar for easier navigation

To provide more convenient movement through the player user interface that is consistent with an Android smartphone experience, the SE180 features a new navigation bar, the first in an Astell&Kern player.

Now you can easily navigate with a single touch and deliver music playback information from any screen. The new one swipe feature moves you to the previous screen.

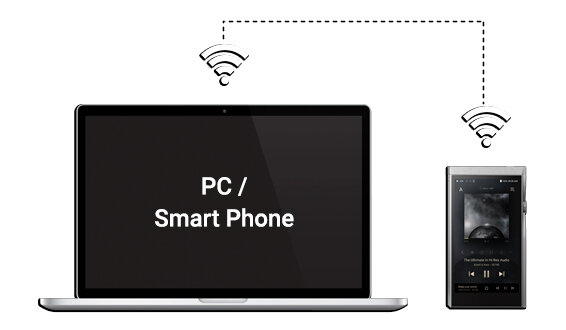

AK File Drop to enjoy wireless transfers

The new AK File Drop function in the SE180 makes files transfers easier and more convenient.

Using AK File Drop, you can freely transfer files wirelessly through a PC, smartphone, or FTP program located on the same network. Music file management is now possible with a cableless, wireless solution.

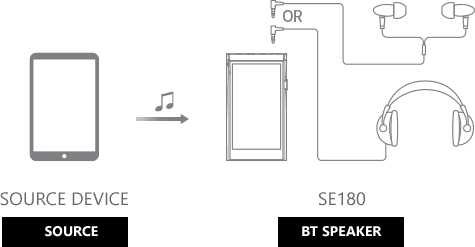

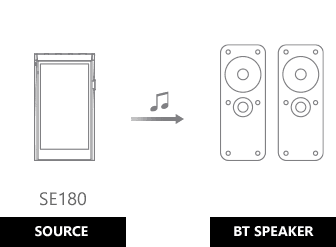

Wireless Hi-Fi Sound Through BT Sink

The newly introduced BT Sink function connects the SE180 to an external device via Bluetooth, similar to connecting a smartphone with a BT speaker. Music from an external device, such as a smartphone can now be played back in high-quality on the SE180 using the BT Sink function.

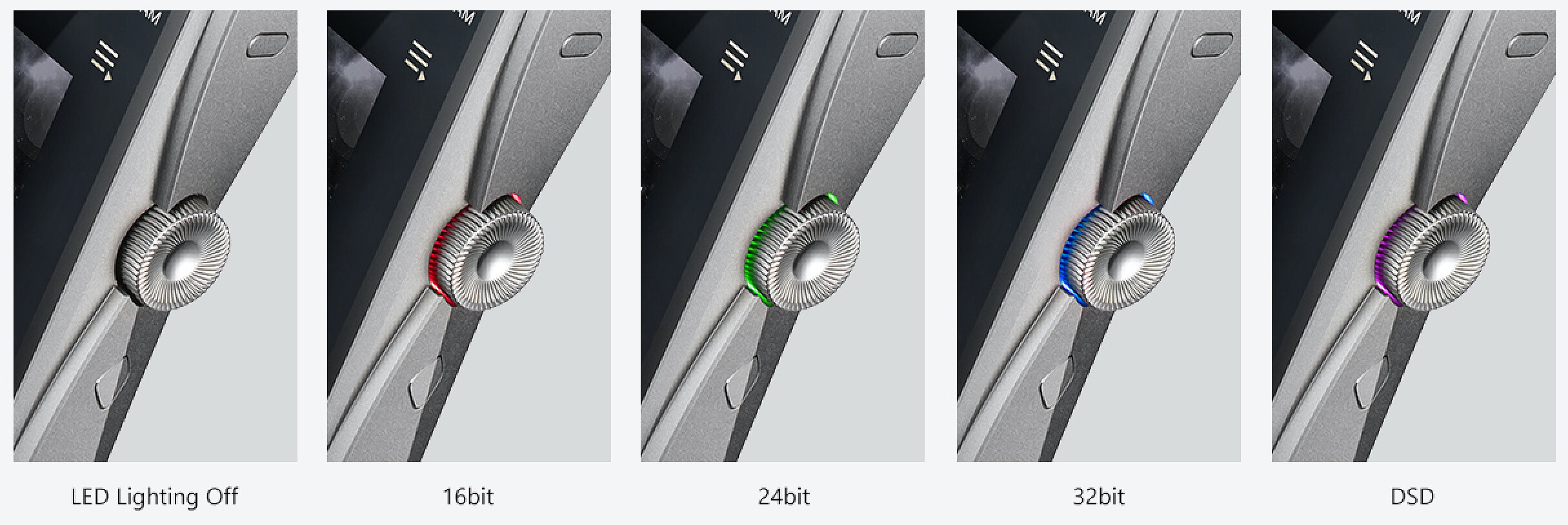

Real-Time Information Confirmed by Light

The SE180 features a LED volume wheel which displays various playback information, including volume level and bit-rate of the track currently playing.

* LED can be turned on or off according to user setting.

Equipped with Bluetooth 5.0 and Support for Wireless 24-bit aptX-HD, LDAC Codecs

The latest Bluetooth version provides high sound quality with the convenience of wireless playback to headphones and IEMs.
Bluetooth 5.0 features faster transmission speed, greater range and a more stable wireless connection when compared to Bluetooth 4.2. Both LDAC and aptX HD is supported to provide audiophiles with the best wireless sound possible.

Roon Ready network players
Roon Ready network players from our partners have Roon’s high-resolution streaming technology built right in.
They combine simple setup, daily reliability, and support for the highest level of digital audio performance in the industry.
Every Roon Ready player is certified by Roon to guarantee the same stellar experience, regardless of its manufacturer, its price, or its features.

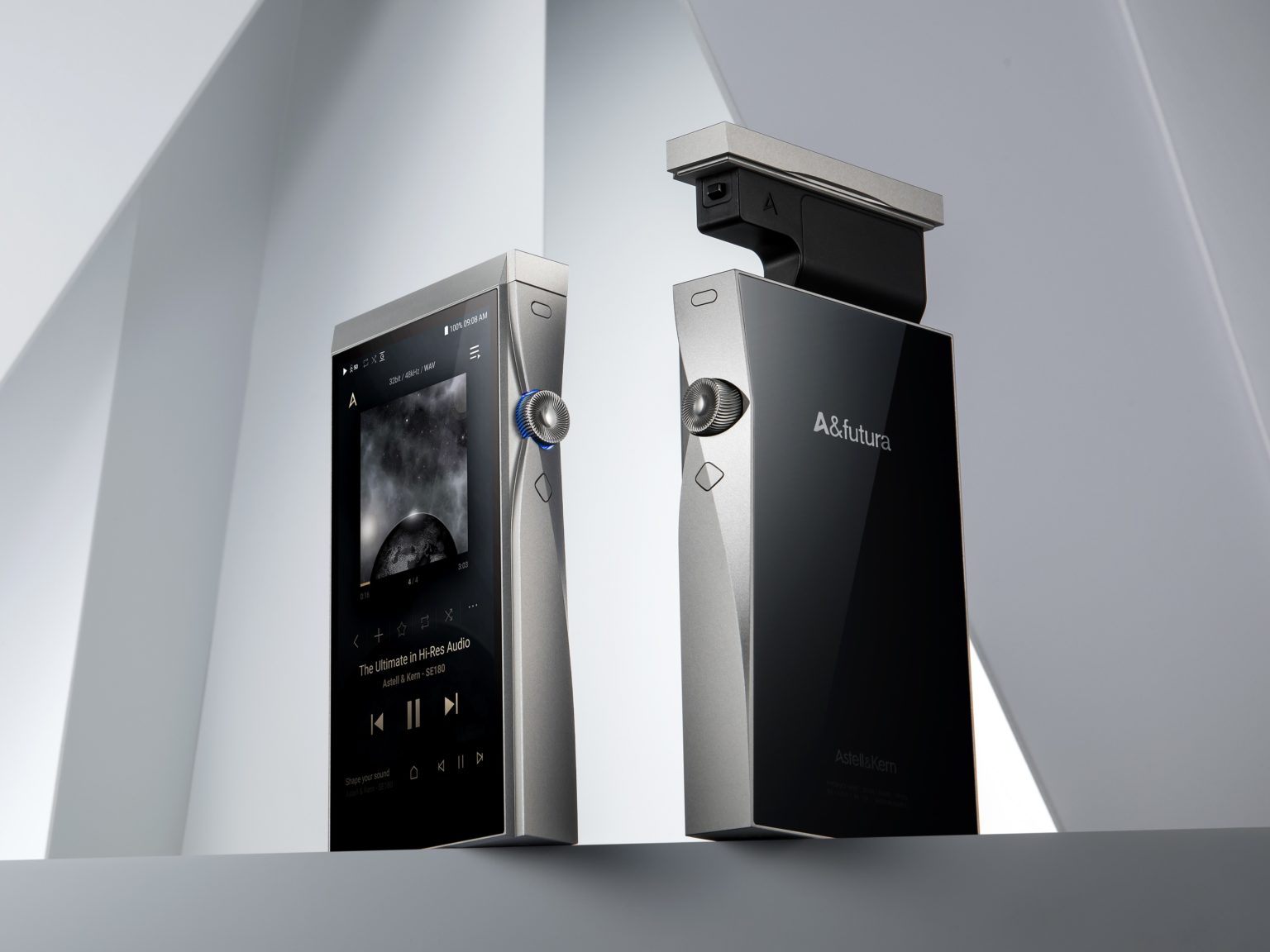

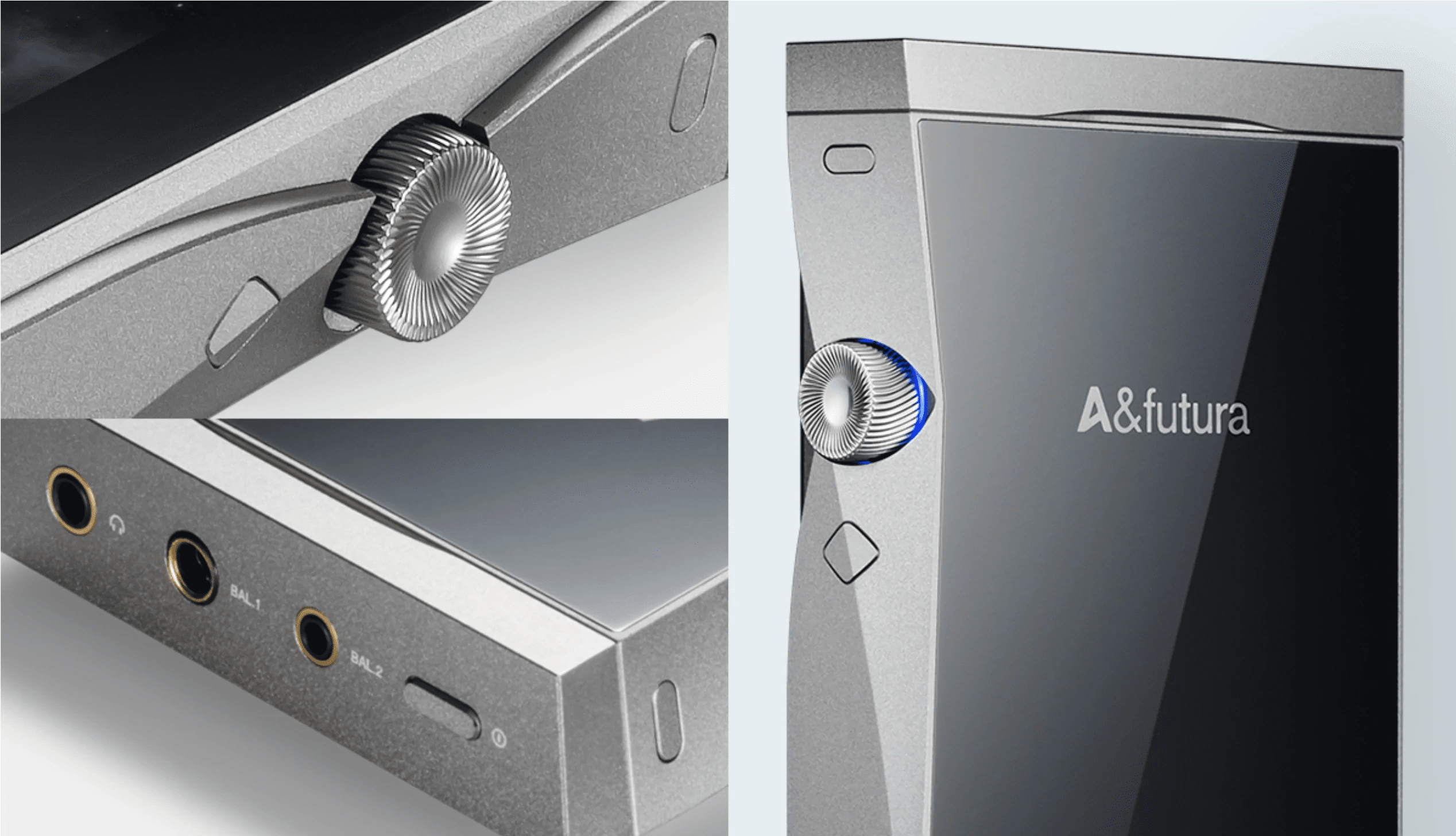

DESIGN

A&futura SE180 is Astell&Kern's first DAC interchangeable DAP, created under the pioneering spirit of the A&futura lineup.

The design of the SE180 resembles the traces of the wind left behind as natural and flowing lines represent an immersed listening experience of great tunes. A smooth yet expanding silhouette is the key design element of the SE180. The continuous and seamless outline of the SE180 and almost infinite number of acoustic settings users can create represents the infinite possibility of tonal scalability.

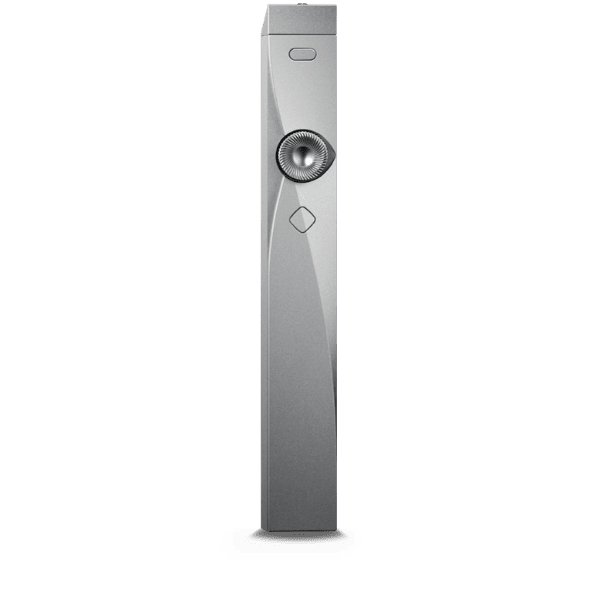

The volume knob is located in the center of the curves. It symbolizes the way that various tones are gathered and harmonized to emit not only the sound but also light as well. The control buttons on the left side have been eliminated and a single multi-function button has been added for the convenience of one-handed operation.

The A&futura SE180’s ceramic rear cover is reminiscent of a finely crafted art sculpture. You can feel the quality and craftsmanship devoted to your device through the subtle beauty. Gold rings are applied to each audio output port, 2.5mm, 3.5mm and 4.4mm connectors, for harmony and unity through its details.

Specification

General Specifications

• Model

  SE180

• Body Color

  Moon Silver

• Body Material

  Aluminum

• Display

  5.0inch 1920x1080 FHD

• Supported Audio Formats

  WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA

• MQA playback

  Services(Tidal Masters), Local files, External USB, MQA-CD(ripped)

• Input

  USB Type-C input (for PC & MAC)

• Charging

  9V 1.67A / 5V 2A

• Wi-Fi

  802.11 b/g/n (2.4GHz)

• Bluetooth

  V5.0 (A2DP, AVRCP, Qualcomm® aptXTM HD, LDAC)

• Dimensions

  3.03 ”(77 mm) [W] x 5.09 ”(129.2 mm) [H] x 0.78 ”(19.9 mm) [D] (Only body)
  3.03 ”(77 mm) [W] x 5.4 ”(137.2 mm) [H] x 0.78 ”(19.9 mm) [D] (Combined with a module)

• Weight

  9.88 oz (280 g)

• Feature Enhancements

  Firmware upgrades supported (OTA)

• SAR

  Body 10g SAR (W/Kg) _ WLAN 2.4Ghz : 0.016

• Wheel

  LED Light (LED Indicator)

Battery

• Supported OS

  Windows 8,10(32/64bit) Mac OS X 10.7 and up

• Supported OS

  Windows 8,10(32/64bit) Mac OS X 10.7 and up

• • Capacity

    3,800mAh 3.8V Li-Polymer Battery

  • Charge Time

    about 5hours (Standard : 5V / 2A Charging), about 3hours (Fast : 9V / 1.67A Charging)



  Memory



  • Built-in Memory

    256GB [NAND]

  • External Memory

    microSD (Max. 1TB) x1

  SO



  • Supported OS

    Windows 8,10(32/64bit) Mac OS X 10.7 and up



  Clock source

• Clock Jiter

  25ps(Typ)

• Reference Clock Jitter

  800 Femto Seconds

SEM1 Specification

• Model

  SEM1

• Body Color

  Moon Silver

• Body Material

  Aluminum, Stainless Steel, Polycarbonate

• Sample Rate

  PCM: 8kHz ~ 384kHz (8/16/24/32bits per Sample) DSD Native: DSD64(1bit 2.8MHz), Stereo
  / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo

• Outputs

  Unbalanced Out (3.5mm), Balanced Out (2.5mm, only 4-pole supported
  / 4.4mm, only 5-pole supported)

• Output Level

  [Normal Gain] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load)
  [High Gain] Unbalanced 3Vrms / Balanced 6Vrms (Condition No Load)

• DAC

  ESS ES9038PRO (Single DAC)

• Decoding

  Support up to 32bit / 384kHz Bit-to-Bit playback

• Dimensions

  3.03 ”(77 mm) [W] x 2.99 ”(76 mm) [H] x 0.78 ”(19.9 mm) [D]

• Weight

  3.53 oz (100 g)

• Playback Time

  about 10.5hours (FLAC, 16bit, 44.1kHz, Vol.50, LCD Off)

Audio Performance

• Frequency Response

  ±0.04dB (Condition : 20Hz~20kHz) Unbalanced / ±0.04dB (Condition : 20Hz~20kHz) Balanced
  ±0.07dB (Condition : 20Hz~70kHz) Unbalanced / ±0.06dB (Condition : 20Hz~70kHz) Balanced

• Signal to Noise Ratio

  [Normal Gain] 122dB @ 1kHz, Unbalanced / 126dB @ 1kHz, Balanced
  / [High Gain] 125dB @ 1kHz, Unbalanced / 129dB @ 1kHz, Balanced

• Crosstalk

  [Normal Gain] -138dB @ 1kHz, Unbalanced / -145dB @ 1kHz, Balanced
  / [High Gain] -138dB @ 1kHz, Unbalanced / -147dB @ 1kHz, Balanced

• THD+N

  [Normal Gain] 0.0005% @ 1kHz, Unbalanced / 0.0004% @ 1kHz, Balanced
  / [High Gain] 0.0007% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced

• IMD SMPTE

  0.0004%, 800Hz 10kHz (4:1), Unbalanced / 0.0004%, 800Hz 10kHz (4:1), Balanced

• Output Impedance

  3.5mm (1ohm) / 2.5mm (1.5ohm) / 4.4mm (1.5ohm)

Etc.

- Audio was NOT muted during the measurement.
- The image/specification may be changed without notice to improve product performance and quality.
