Astell&Kern SP2000T - Copper Nickel Limited Edition

SP2000T Limited Edition

Everlasting Beauty - SP2000T Copper Nickel Limited Edition

Find Your Optimal Sound

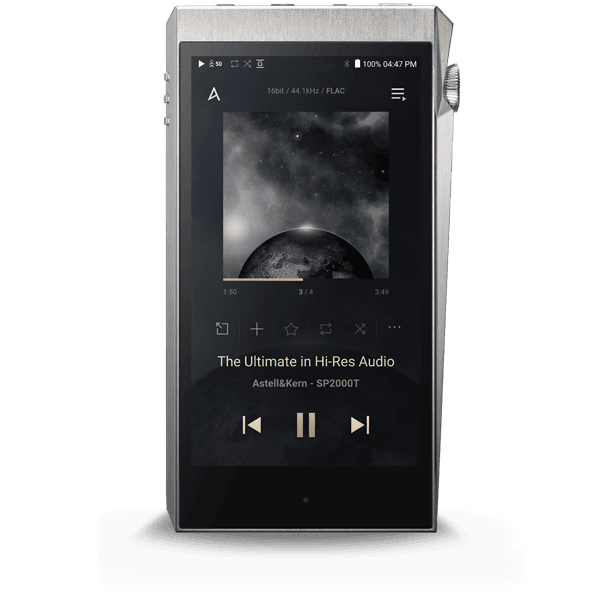

SP2000T

The "T" in SP2000T does not stand for a specific word,
but rather encompasses design approaches and directions made during the product development process.

True - The SP2000T inherits the SP2000's true-sound philosophy                 Timeless - Timeless Value

Triple -  Triple AMP System                                                        Tube - Vintage Vacuum Tube Amplifier

Staying true to our philosophy of delivering original audio experiences without compromise,
Astell&Kern strives to design portable music players that reach beyond the capabilities of a standard playback device
to enhance the listener’s music enjoyment.
The SP2000T combines the OP AMP configuration of our SP2000—the culmination
of Astell&Kern's finest audio technology—with a nostalgic vacuum TUBE AMP, adding a vintage feel to the portable player.

Introducing the A&ultima SP2000T. The Ingenious New Solution.

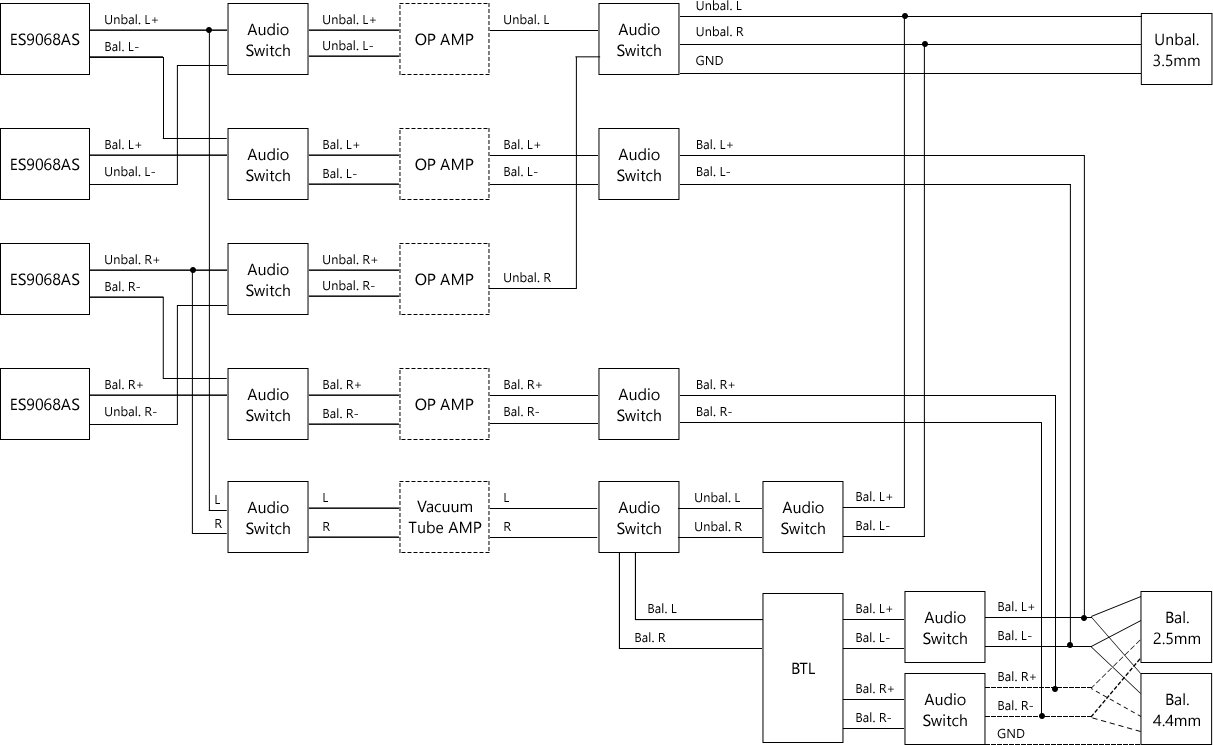

TRIPLE AMP SYSTEM is the Next Generation of AMP Technology

The SP2000T exceeds the standard approach to AMP Mode selection, based on the type of music you are listening to.
Select between TUBE AMP mode, OP AMP mode, or the brand-new HYBRID AMP mode.
OP AMP mode puts Astell&Kern's AMP technology expertise to use, delivering extreme clarity and dynamic sound,
while TUBE AMP mode provides a uniquely warm and musical sound.
HYBRID AMP mode - a first for digital audio players - enhances the resolution and clarity of the existing TUBE AMP mode to express more musical detail.
HYBRID AMP mode, combines the advantages of retro analog performance and high-resolution output, giving you the pleasure of a brand new tonal characteristic.
Experience the unique sound enhancements that AMP technology has to offer.

Vacuum Tube Amplifier Com-patible with 2.5 mm, 3.5 mm and 4.4 mm Output Jacks

The SP2000T supports all output types, with no restriction on the type of receiver used,
so you can enjoy the unique characteristics of the vacuum tube

Real Vacuum Tube

Equipped with the portable-friendly dual-triode KORG Nutube, for a unique TUBE AMP sound.

Nutube offers a reliable continuous playback time of approximately 30,000 hours.It features an anode grid filament structure which operates the same as a triode vacuum tube.It's much smaller, consumes far less power and yet delivers the same audio with rich overtones.

The SP2000T supports all output types, with no restriction on the type of receiver used, so listeners can enjoy the unique characteristics of the vacuum tube.

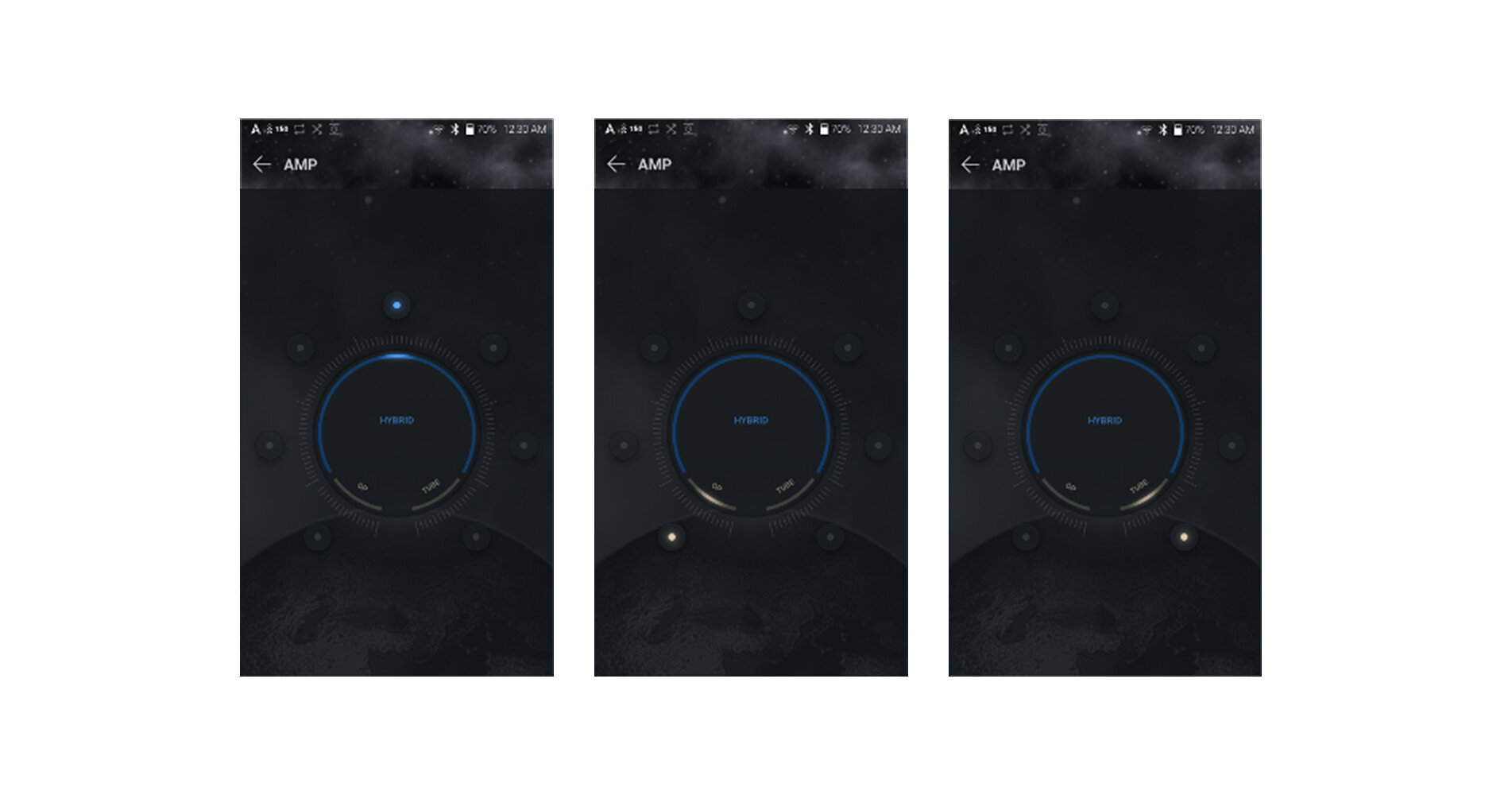

HYBRID AMP MODE

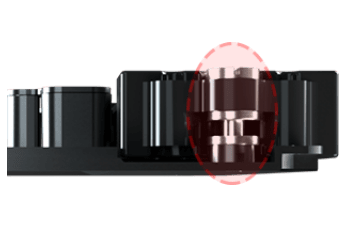

Internal Mechanical Design to Minimize Noise

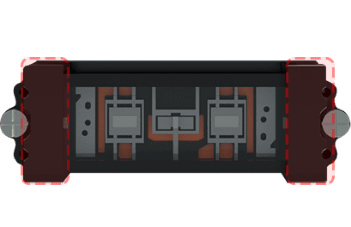

Special Design to Minimize Microphonics Noise

SP2000T features a special design tailored to minimize microphonics (the phenomenon wherein the vacuum tubes generate noise even from a small external impact). Multiple design iterations and verifications have been performed over a long period of time to fix the structural issues of vacuum tubes that generate microphonics noise even from a small impact or vibration. For minimization of mechanical impact and vibration, both sides of the vacuum tube are fixed with flexible silicone covers, and the vacuum tube has been modularized so it is physically separate from the PCB. Astell&Kern goes to great lengths to innovate and design these small components that make a big difference in the quality and sound of our products that no other manufacturer can match. A structure that uses magnetic forces to float the amp in the air, thus minimizing noise from the vacuum tube itself, which is generated when it is exposed to mechanical impact or vibration.

Silver Plating Shield Can

Astell&Kern products apply shield cans so that noise and elec-tromagnetic interference, which occur when the countless parts are in operation, do not affect the audio block.

The SP2000T has taken it a step further by applying highly con-ductive, hyper-pure silver plating on the existing shield cans for perfect shielding that provides excellent audio performance.

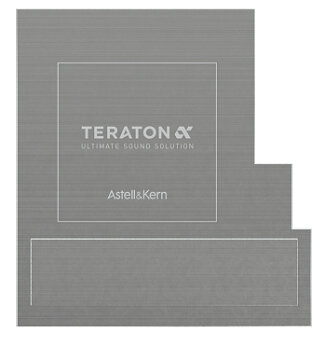

Astell&Kern Audio Technology Forms the TERATON ALPHA Sound Solution

AK ULTIMATE SOUND SOLUTION, TERATON ALPHA

TERATON ALPHA is AK's Ultimate Sound Solution to produce audio playback that is close to the original sound through the audio output interface by use of effective power noise removal, efficient power management and amplification with minimal distortion. TERATON ALPHA features Astell&Kern's patented technologies, which are the result of tens of thousands of hours of continuous research and development to produce sound close to the original sound the artist and producer intended.

TERATON ALPHA features Astell&Kern's patented technologies, which are the result of tens of thousands of hours of continuous research and development to produce sound close to the original sound the artist and producer intended.

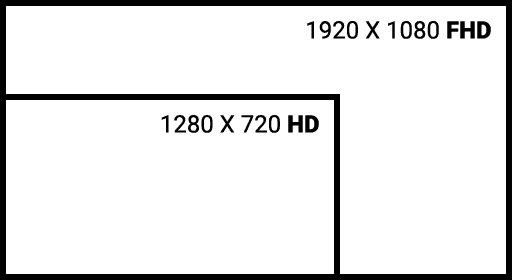

Adoption of Full HD Display for Improved Image Quality

The SP2000T features a full HD screen to provide a higher quality display.

441 PPIHigh pixel density

                                                                                      16.7M colorsLarge color gamut

                                                                                      5.0 inchLarge display

                                                                                      1920*1080High resolution

Quad-DAC for Perfection of Superior Sound

The SP2000T is equipped with four ES9068AS DACs, this allows two DACs per channel for dedicated decoding. The SP2000T achieves a more detailed and balanced sound with great depth and spatial realism.

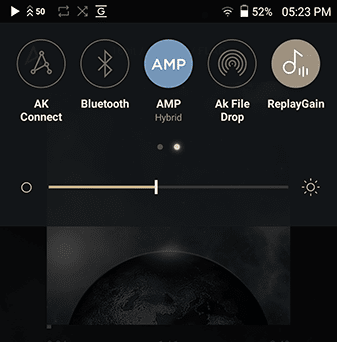

ReplayGain Automatically and Uniformly Adjusts Playback Volume

Through the softly dispersing LED light, Users are notified of the bit depth information of the song being played or the current AMP mode.

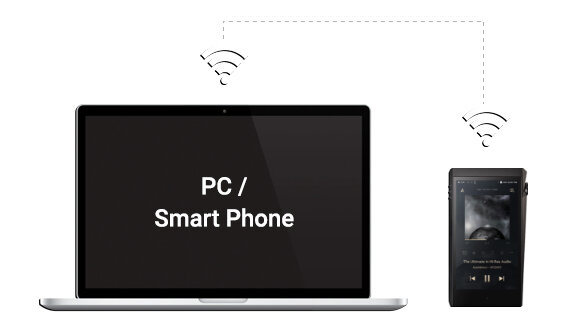

AK File Drop to enjoy wireless transfers

The new AK File Drop function in the SP2000T makes files transfers easier and more convenient. Using AK File Drop, you can freely transfer files wirelessly through a PC, smartphone, or FTP program located on the same network. Music file management is now possible with a cableless, wireless solution.

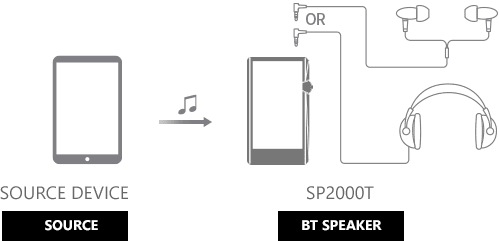

Wireless Hi-Fi Sound Through BT Sink

The newly introduced BT Sink function connects the SP2000T to an external device via Bluetooth, similar to connecting a smartphone with a BT speaker. Music from an external device, such as a smartphone can now be played back in high-quality on the SP2000T using the BT Sink function.

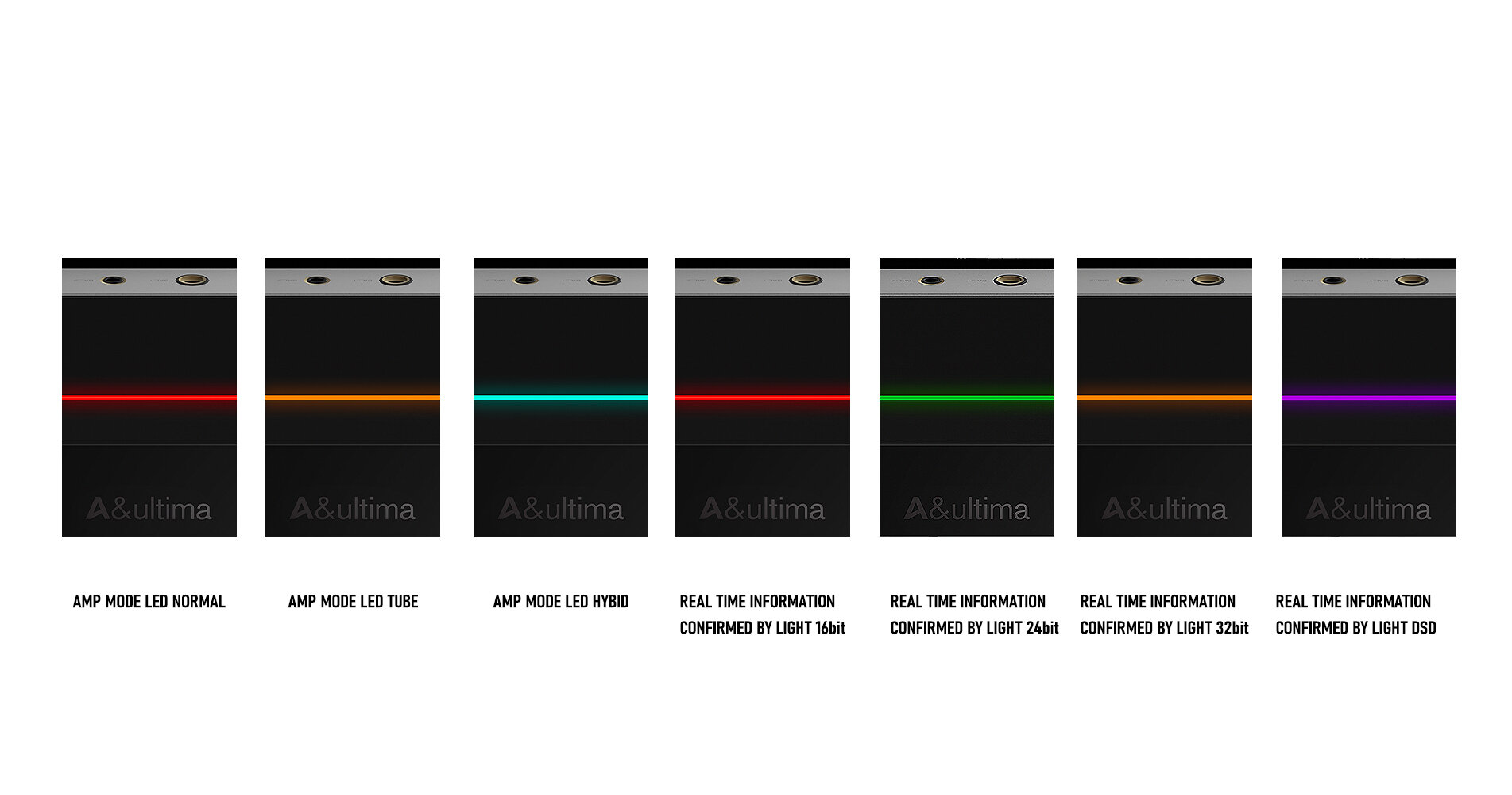

Real-Time Playback and AMP Mode Information Reflected by Light

Through the softly dispersing LED light, Users are notified of the bit depth information of the song being played or the current AMP mode.

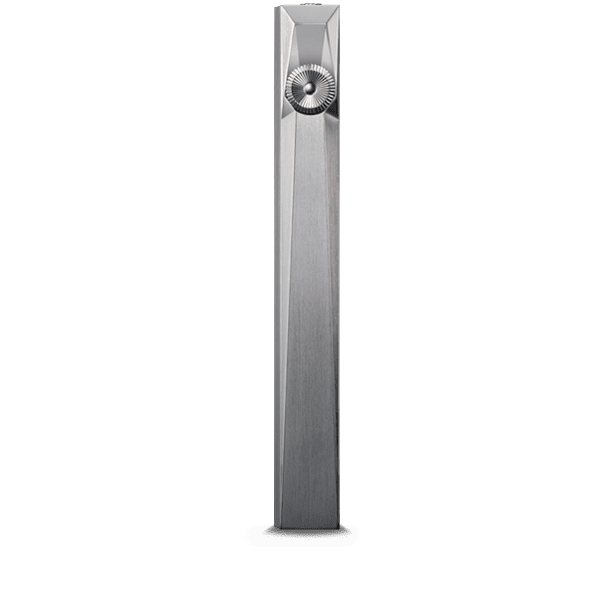

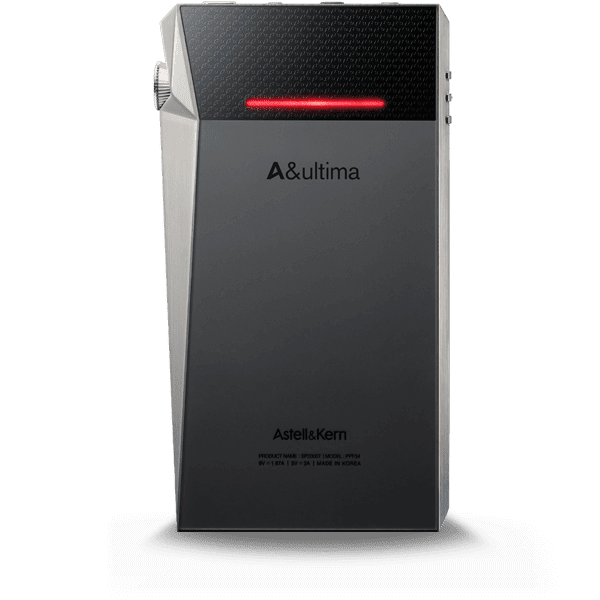

DESIGN

The radial pattern of the volume wheel reflects bursts of light, and the protective surface has been modified to distinguish it from other models.
The side lines fan outward as they extend downwards from the wheel.Similarly to the SP2000, the edge extends to the rear panel, emphasizing the connection between the two models.
The proportions of the face have been adjusted to accommodate the larger form , and the CMF (Color, Materials, and Finish) have all been selected to make the SP2000T stand out from its predecessor, the SP2000.
To reinforce the idea of light illuminating space, we combined the image of the amp's light filling the empty space of the vacuum tube with Astell&Kern's light and shadow concept.
The protector around the volume wheel is encircled, providing an image of a space that has been created from light.
Although the glass on the rear is one piece, it looks like two separate pieces, and the boundary of the two is designed to look onsistent with the wheel protector.
Rather than evoking the coldness of glass, the underside has been designed to express warmth, and the top features a subtle, shimmering design that flares to life when the amp is switched on.

Specification

General specifications

• Model

  SP2000T

• Body Color

  Onyx Black, Copper Nickel

• Body Material

  Aluminum, Copper Nickel

• Display

  5inch FHD 1920 x 1080 Touch display

• Supported Audio Formats

  WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA

• Sample rate

  PCM : 8kHz ~ 384kHz (8/16/24/32bits per Sample) / DSD Native: DSD64(1bit 2.8MHz) Stereo /
  DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo / DSD512(1bit 22.4MHz), Stereo

• Output Level

  Unbalanced 3.0Vrms / Balanced 6.0Vrms (Condition No Load)

• CPU

  Quad-Core

• DAC

  ESS ES9068AS x4 (Quad-DAC)

• Vacuum Tube

  KORG Nutube 6P1

• Decoding

  Support up to 32bit / 384Hz Bit-to-Bit Playback

• Input

  USB Type-C input (for charging & PC & MAC)

• Outputs

  Unbalanced Out (3.5mm) / Optical Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported / 4.4mm, only 5-pole supported) )

• Wi-Fi

  802.11 a/b/g/n/ac (2.4/5GHz)

• Bluetooth

  V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)

• Dimensions

  3.07 ”(78.1 mm) [W] x 5.55 ”(141.1 mm) [H] x 0.68 ”(17.5 mm) [D]

• Weight

  about 10.89 oz (309 g)

• Feature Enhancements

  Firmware upgrades supported (OTA)

Audio Performance

• Frequency Response

  ±0.024dB (Condition: 20Hz~20kHz) Unbalanced / ±0.038dB (Condition: 20Hz~20kHz) Balanced
  ±0.027dB (Condition: 20Hz~70kHz) Unbalanced / ±0.052dB (Condition: 20Hz~70kHz) Balanced

• Signal to Noise Ratio

  121dB @ 1kHz, Unbalanced / 123dB @ 1kHz, Balanced

• Crosstalk

  -137dB @ 1kHz, Unbalanced / -142dB @ 1kHz, Balanced

• THD+N

  0.0003% @ 1kHz, Unbalanced / 0.0003% @ 1kHz, Balanced

• IMD SMPTE

  0.0004% 800Hz 10kHz(4:1) Unbalanced / 0.0003% 800Hz 10kHz (4:1) Balanced

• Output Impedance

  3.5mm (1ohm), 2.5mm (1.5ohm), 4.4mm(1.5ohm)

Clock source

• Clock Jitter

  25ps(Typ)

• Reference Clock Jitter

  70ps

Battery

• Capacity

  4,200mAh 3.8V Li-Polymer Battery

• Playback Time

  About 9 hours (Standard : FLAC, 16bit/44.1kHz, Unbalance, Volume 50, LCD Off, LED On, OP AMP Mode)

• Charge Time

  About 3.5 hours (Standard - 9V/1.67A Fast charging)
  About 5 hours (Standard - 5V/2A General charging)

Memory

• Built-in Memory

  256GB [NAND]

• External Memory

  microSD (Max. 1TB) x1

OS

• Supported OS

  Windows 7,8,10 (32/64bit), MAC OS X 10.7 and up

Etc.

•

  - Audio was NOT muted during the measurement.
  - The image/specification may be changed without notice to improve product performance and quality.
