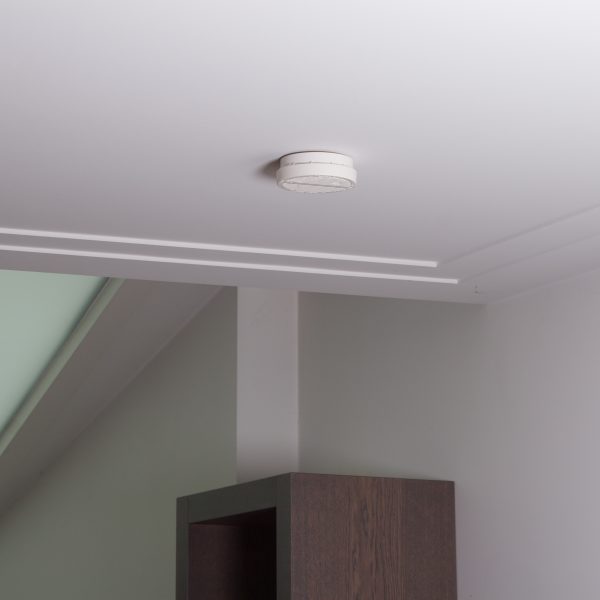

Smanos Smoke Alarm SMK-500

This photoelectric detector is designed to give early warnings of a developing fire by sounding its built-in siren and sending notifications to the connected smartphones. It is recommended for kitchens, corridors, basements, or other confined spaces.

• Easy to assemble


• Test button to test operation


• EN14604 certified


• Battery life up to 1 year


• Compatible with smanos  X500, X330, W100, W100i, W120i, L020 alarm systems

Specifications

• Power Supply: DC 9V 6F22 battery x1
• Standby Current: 5uA
• Alarm Current: < 15mA
• LED Frequency in Working State: Once every 32 sec.
• LED Frequency in Alarming State: Once every 0.62 sec.
• Low Battery State: Beep once with LED Flash per 60 sec. (Lasts for 30 days)
• Siren Volume: 85dB
• Monitoring Area: 20m³
• Transmitting Distance: < 80m (open area/no interference)
• Radio Frequency: 868 MHz
• Housing Material: ABS plastic
• Operating Condition: Temperature -10°C ~ +55°C; Relative Humidity <80% (non-condensing)
• Dimensions (L x W x H): 102 x 102 x 31 mm
